Product Details

LightSource:LED	ItemType:TubeLights
LEDLightSource:EpistarSMD2835	Warranty(Years):5
InputVoltage(V):100-240V/277Vacoptional	LampPower(W):20
LampLuminousFlux(lm):2200	LampLuminousEfficiency(lm/w):110
CRI(Ra>):80	ColorTemperature(CCT):purewhite,coolwhite,purewhite
WorkingTemperature(鈩?:-20-40	WorkingLifetime(Hour):50000
LampBodyMaterial:AluminumAlloy	IPRating:IP65
Certification:CE,EMC,LVD,RoHS	PlaceofOrigin:Guangdong,China(Mainland)
BrandName:Oneo	ModelNumber:TPL-600-20
Keyword:ledtriprooflightwithemergencybackup	LEDquantity:96pcs
Beamangle:120°	Function:PIRSensororEmergencyfunction
Accessories:Mountingbracket,Suspendedwires	Netweight:1.5kg
PowerFactor:>0.95	length:600mm
cover:Milkycover	OEM:welcome

Product Description

Welcome

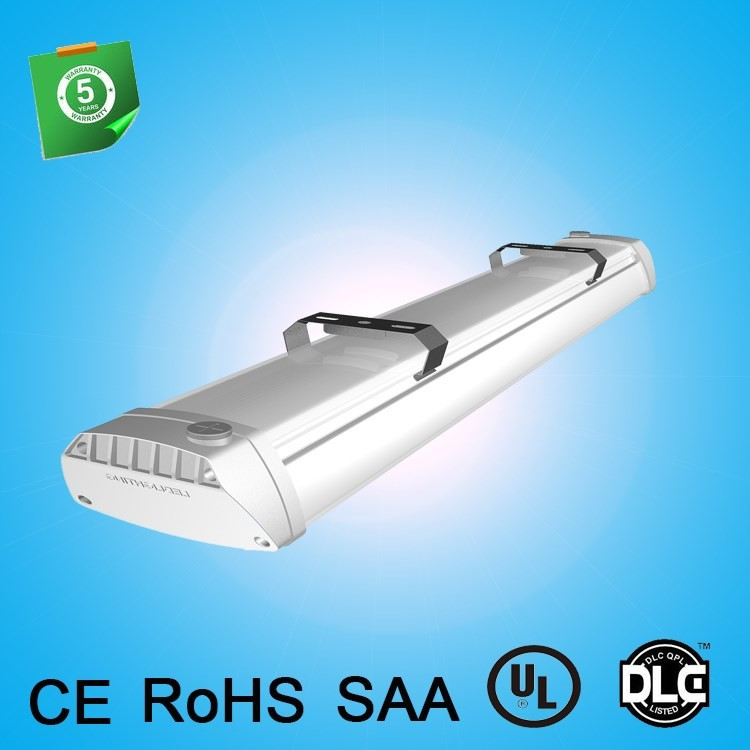

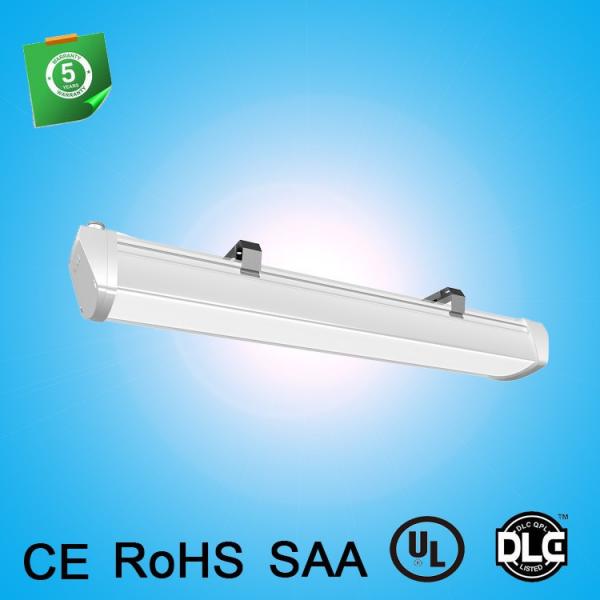

High lumen 20w 40w 60w waterproof led triproof light with emergency back up

Product Description

Product Details

1.Excellent design with dust-proof, anti-corrosion, waterproof 2.function.
3.With high heat resistance and good toughness, high impact.
4.High elastic rubber ring seal between the mask and the lamp, standard IP65.

Product Details

1.Lumens efficiency more than 110lm/w for fixture, CRI>80Ra.
2.No bad glare and stroboscopic, no flicker.
3.Power factor greater than 0.95.

Product Details

1.Long life, L70>50,000 Hours.
2.Professional technology support, can offer Dialux solution, IES.

Product Details

1.PIR Sensor or Emergency function is available

2.5 years warranty

3.CE ROHS certificate

Model	TPL-600-20	TPL-1200-40	TPL-1500-60
LED Light Source	SMD 2835	SMD 2835	SMD 2835
Watt & Lumen	20W/2200lm	40w/4400lm	60W/6600lm
Beam Angle	120 degree	120 degree	120 degree
Length	600mm	1200mm	1500mm
CCT	WW:2700-3200K, NW:4000-4500K, CW:5000-6500K	WW:2700-3200K, NW:4000-4500K, CW:5000-6500K	WW:2700-3200K, NW:4000-4500K, CW:5000-6500K

Installation Process

Applications

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: within 7 days for sample order, within 15 days for quantity order.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: By Express: DHL/UPS/FEDES; It will takes about 3- 5 days to arrive the destination.

By Air: It takes about 1 week to arrive the destination.
By sea: It takes about one month to arrive the destination.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5-6 years warranty to our products.

Will provide free/rework new products based on the proof-documents.

If driver failed, we’ll send new driver.
If LED failed, we’ll sent new LED.
Unclear reason, we will sent full new set.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
